Africa glazed tile roll forming machine

    Payment Type: L/C
    Min. Order: 1 Bag/Bags
Basic Info

Model No.: glazed tile

Usage: Roof Panel Roll Forming Machine

Material Width: 914mm

Driving Of Machine: By Chain

Additional Info

Productivity: 25sets/Month

Place of Origin:  China

Supply Ability: 25sets/Month

Product Description

Africa glazed tile Roll Forming Machine

Africa glazed roof tile are produced by glazed tile roll forming machine from high quality colored coated galvanized sheets most time apply as roofing on Villas or some residential house.

The final product can be cut as per set length controller,and the length is automatically measured by encoder.When final product reached set length,machine will stop to cut the sheet automatically.Finish thhis action,the machine will run again continuously .

There is only one but key difference between a metal glazed roof tile and a regular metal roof panel: Steps! Generally speaking, a regular metal roof panel with steps is called a metal glazed roof tile! Therefore the key difference between a regular metal Roof Panel Roll Forming Machine and a metal glazed tile roll forming machine lies at this situation that there is an extra hydraulic pressing equipment on a step tile roll forming machine to press steps on the roll formed roof panels.

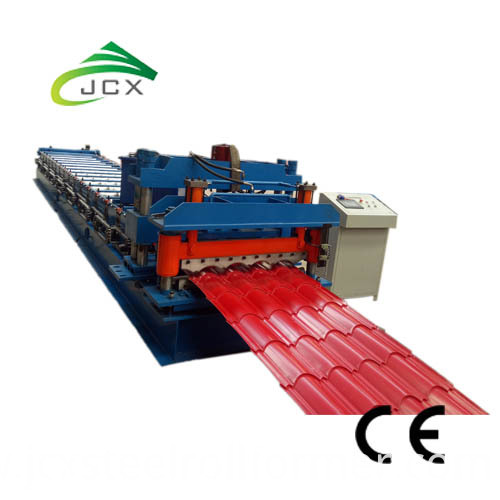

1.Photos of Machine:

step tile forming machine

2.Technology parameters:
The weight of machine is about3.1tons.The total dimension of machine:6800(L)*1200(W)*1500mm(H)
2.1Manual decoiler:
Capacity of uncoiler:5tons
Expansion of segment:Manual
Rotation of segment:Manual
Number of segment:4
Range of segment expansion:480-520mm
Operation method:Manual
2.2 Guiding system:
To keep the material straight
Entrance and adjustable wheel: 2rolls
Qty: 1
2.3Main forming machine:
Coil thickness:0.3-0.7mm
motor type: 3 phase asynchronous motor
Main motor power:4kw+3kw(normal speed),
Approx.16 groups roller including
Roller : S45C with quenching treatment,Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.

Shaft:Diameter of max shaft: ø70mm(hardening and tempering)

Transmission type:by one inch chain

2.4 Hydraulic cutting:
Material of blade: Cr12Mov,HRC58-62
Length measuring: Automatic encoder length measuring
Type of cutting:Cutting after forming:Cut the sheet after roll forming to required length.No need to change mold for different sizes
Cutting motion:The main machine automatically stops and the cutting will take place.After the cutting,the main machine will automatically start.
Power of motor:3kw
2.5 Product support frame
Size: L 3m x W0.5m

Looking for ideal Glazed Tile Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Sheet Roll Forming Machine are quality guaranteed. We are China Origin Factory of Used Roll Forming Machine. If you have any question, please feel free to contact us.
