Botou Golden Integrity Roll Forming Machine Co.,Ltd

PRODUCT CATEGORIES

Used pbr panel roll former
Used pbr panel roll former
Used pbr panel roll former

Used pbr panel roll former

Payment Type: L/C
Min. Order: 1 Bag/Bags

Basic Info

    Model No.: pbr panel

Additional Info

    Productivity: 25sets/Month

    Place of Origin:  China

    Supply Ability: 25sets/Month

Product Description

Used pbr panel roll former

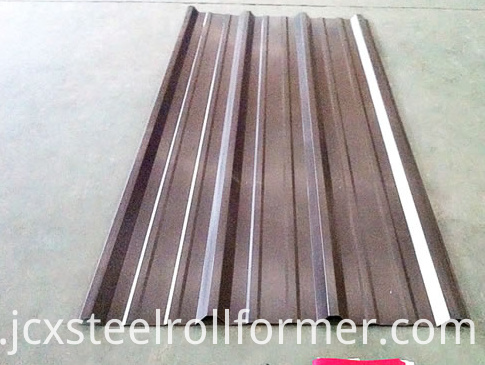

Maybe you are confused that if PBR panel and R panel are same.The answer is NO.The photo of panel underneath fyi.Our pbr panel can produce these two

PBR panel and R panel are used a lot on resisdential house.PBR is short for "PURLIN BEARING RIB"

pbr panel


1.Main parameters of PBR panel roll former
Parameters of raw material
Material Thickness I.D Yield Strength
Q235
gi&ppgi& galvalume
0.25-0.7mm 508mm <=235mpa
Decoiling → Roll Forming →Hydraulic cuttingCollecting table
2.Photos of Machine:

Roof Panel Roll Forming MachineRoll Forming Machine


3.Technology parameters:
The weight of machine is about3.1tons.The total dimension of machine:6800(L)*1200(W)*1500mm(H)
3.1Manual decoiler:
Capacity of uncoiler:5tons
Expansion of segment:Manual
Rotation of segment:Manual
Number of segment:4
Range of segment expansion:480-520mm
Operation method:Manual
Qty: 1
3.2 Guiding system:
To keep the material straight
Entrance and adjustable wheel: 2rolls
Qty: 1
3.3Main forming machine:
Coil thickness:0.25-0.7mm
motor type: 3 phase asynchronous motor
Main motor power:4kw+3kw(normal speed),
Approx.18groups roller including
Roller : S45C with quenching treatment,Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.

Shaft:Diameter of max shaft: ø70mm(hardening and tempering)

Transmission type:by one inch chain

Qty: 1
3.4 Hydraulic cutting:
Material of blade: Cr12Mov,HRC58-62
Length measuring: Automatic encoder length measuring
Type of cutting:Cutting after forming:Cut the sheet after roll forming to required length.No need to change mold for different sizes
Cutting motion:The main machine automatically stops and the cutting will take place.After the cutting,the main machine will automatically start.
Power of motor:3kw
3.5 Product support frame
Size: L 3m x W0.5m

Looking for ideal Used Pbr Panel Roll Former Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Pbr Panel Roll Forming Machine are quality guaranteed. We are China Origin Factory of R Panel Roll Forming Machine. If you have any question, please feel free to contact us.

Product Categories : Roof And Wall Panel Roll Forming Machine > Trapezoidal Sheet Roll Forming Machine
