3inch Composite Decking Sheet Roll Forming Machine

Payment Type:
L/C,T/T,D/P,Paypal
Incoterm:
FOB,CFR,CIF
Min. Order:
1 Set/Sets
Transportation:
Ocean,Land
Port:
Tianjin
Share:
  • Product Description
Overview
Product Attributes

Model No. 3inch

CertificationISO

UsageOther

Tile TypeColored Steel

ConditionNew

CustomizedCustomized

Supply Ability & Additional Information

Packagingcovered with plastic films

Productivity30 Sets Per Month

TransportationOcean,Land

Place of Origin China

Supply Ability30 Sets Per Month

CertificateISO9001: 2000, Ce, ISO

HS Code84552210

PortTianjin

Payment TypeL/C,T/T,D/P,Paypal

IncotermFOB,CFR,CIF

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
covered with plastic films


3inch Composite decking sheet roll forming machine-floor deck machine

3inch Composite Decking Sheet Roll Forming Machine-Floor Deck Machine

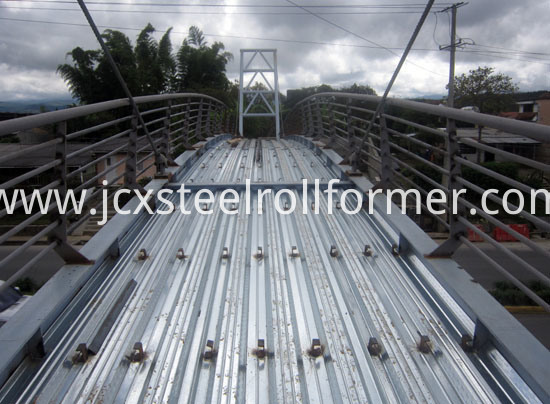

Floor Decking sheet roll forming machines have been designed for the production of various types of metal decks which are usually applied for building and floor industries, and sometimes for bridge construction as well.  The most popular steel decks produced by our metal deck roll forming machine are currently used in the industiral applications as following:
Composite metal deck: The composite metal decks have embossments in the vertical ribs designed to interlock with concrete slabs, creating a reinforced concrete slab to develop a composite floor system.

3inch Composite Decking Sheet Roll Forming Machine-Floor Deck Machine
3inch Composite Decking Sheet Roll Forming Machine-Floor Deck Machine




1.1 Feeding width: 1250mm
1.2 Effective width: 1025mm
1.3 Material thickness: 0.8-1.5mm
2. Process flow: Decoiling--feeding---forming---cutting---production
3.1 Material coil inner diameter: 450mm-700mm
3.2 Max coil width: 1200mm
3.3 Carrying capacity: 5T
4. Forming Device:
4.1 Number of forming steps: 24 steps
4.2 Shaft material: 45# steel with harden treatment, outer diameter 90mm
4.3 Roller material: 45# steel
4.4 Main motor power: 11kw(2sets)
4.5 Forming speed: 12-15m/min
4.6 Voltage: 380V/50Hz/3 phase or as your request
5. Cutting Device:
5.1 hydraulic cutter
5.2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62C
5.3 cutting system: Advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.
6. Controlling Device:
6.1 screen: 5.7 inch Taida screen from Taiwan
6.2 PLC: Taida DVP14ES from Taiwan
6.3 coder: Japanese Omron E6C2
7. Hydraulic:
7.1 Advanced hydraulic system from Taiwan
7.2 Power: 4kw

8. Simple output frame: Simple frame weld bu #8 U bar, 1 PCS of 3m
