Nail strip roof forming machine

Payment Type:
L/C
Min. Order:
1 Bag/Bags
Share:
  • Product Description
Overview
Product Attributes

Model No.nail strip standing seam roof

Supply Ability & Additional Information

Productivity25sets/Month

Place of Origin China

Supply Ability25sets/Month

Payment TypeL/C

Nail strip roof forming machine

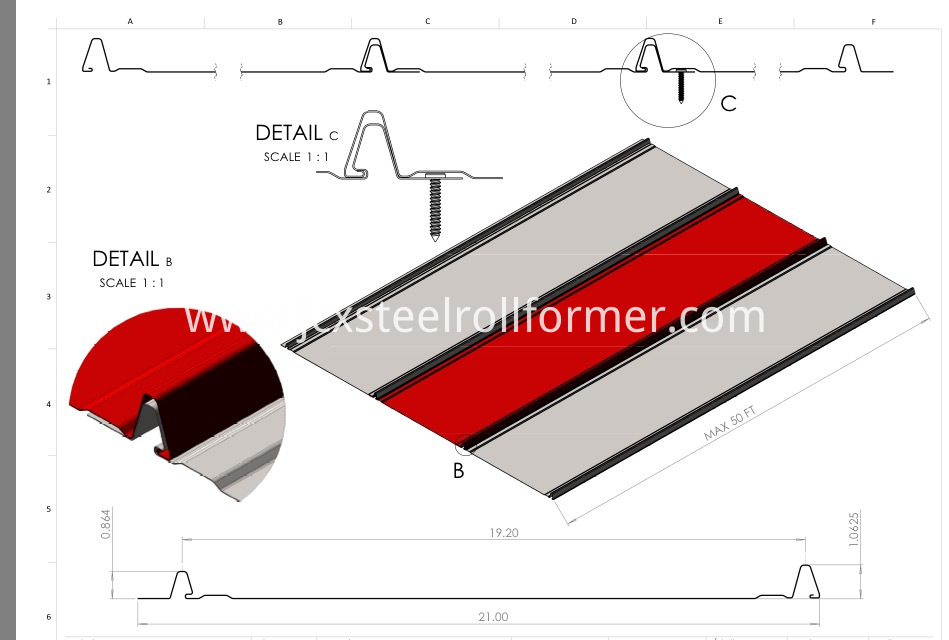

Nail strip standing seam Roofing Panel no need seaming and cliper.It is now a stronger and more durable panel which withstands the extreme weather that wreaks havoc on most roofs. This panel is available in both 26 and 24 gauge and is custom produced in the factory with 10 popular colours and 2 sizes, 12" and 16".

Our snap locking standing seam roll forming machine can be used a workshop.


Roof Panel Roll Forming Machine

Cz Purlin Roll Forming Machine

High Way Crash Barrier Roll Forming Machine

Light Gauge Framing Machine

Roller Shutter Door Forming Machine

Double Layer Roll Forming Machine


1.Main parameters of nail strip standing seam machine
  Parameters of raw material
Material Thickness I.D  Yield Strength
Q235
 gi&ppgi& galvalume
0.25-0.7mm 508mm <=235mpa
Decoiling →  Roll Forming  →Hydraulic cuttingCollecting table

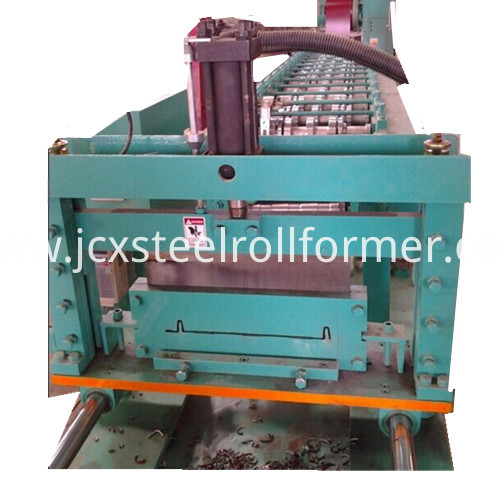

2.Photos of Machine:



Snap Locking Standing Seam Roof MachineSnap Lock Standing Seam




3.Technology parameters:
The weight of machine is about3.1tons.The total dimension of machine:6800(L)*1200(W)*1500mm(H)
3.1Manual decoiler:
Capacity of uncoiler:5tons
Expansion of segment:Manual
Rotation of segment:Manual
Number of segment:4
Range of segment expansion:480-520mm
Operation method:Manual
Qty: 1
3.2 Guiding system:
To keep the material straight
Entrance and adjustable wheel: 2rolls
Qty: 1
3.3Main forming machine:
Coil thickness:0.25-0.7mm
motor type: 3 phase asynchronous motor
Main motor power:4kw+3kw(normal speed),
Approx.18groups roller including
Roller : S45C with quenching treatment,Shafts  of rollers are tooled by grinding machine for two times to ensure the precision of final product.

Shaft:Diameter of max shaft: ø70mm(hardening and tempering)

Transmission type:by one inch chain

Qty: 1
3.4 Hydraulic cutting:
Material of blade: Cr12Mov,HRC58-62
Length measuring: Automatic encoder length measuring
Type of cutting:Cutting after forming:Cut the sheet after roll forming to required length.No need to change mold for different sizes
Cutting motion:The main machine automatically stops and the cutting will take place.After the cutting,the main machine will automatically start.
Power of motor:3kw
3.5 Product support frame
Size: L 3m x W0.5m
